Devices

medialoopster administration → medialoopster → Devices

Within a production you can have multiple devices - realms, to divide your assets into groups and to intelligently manage media files within your production environment. Devices are an abstract way of assigning metadata and system logic to a directory path. Any directory that is available to the host system (i.e. local folders, network folders, mounted external drives) can be used as a device.

In medialoopster devices are key workflow components and also provide are more user friendly view on the filesystem structure. It is recommended to have only one device per path and device paths not to be included in one another (no nesting of devices).

Options

Name	Required	Description
Name	Yes	Internal name of device. Should be unique.
Display Name	Yes	Device name visible to users in browser interface.
Path	Yes	Full path to device folder, as seen by medialoopster. Should be unique and not included in other device paths. Never forget the trailing "/" for paths! It is important for path inclusion comparisons.
Is internal	Yes	Boolean value indicating that the device is managed by medialoopster. All devices must be internal, with a few exceptions, such as devices for archives. Default is `false`.
Is archive	No	Boolean value indicating if the device stores archives. Default is `false`.
Site	No	A reference to the associated site. To view assets in the browser it is not necessary to set the device's site, as the device's production a has already a site associated. It is however necessary to set the device's site for asset transfers; in this case, for consistency, the device's site should be the same as the site of the device's production.
Autoshot detection	No	Boolean value indicating that at uploading videos on this device, the shots will be automatically detected. Default is `true`. If not selected (since it is an intensive operation), the shots can never be generated again.
Transcoding profile	No	Choose a transcoding profile for this field if you'd like to have automatic transcoding when creating new assets. The same effect happens if none is selected here, but one is set by default in the transcoding profile administration interface.
Passthrough profiles	No	A list of media formats that are exempted from transcoding, such that the media file can pass directly through to be stored in the device without being transcoded.
Allow direct writing	No	Boolean value indicating if: the device allows direct writing (`true`) . Default is `true` (recommended). the device allows only buffered write mode (`false`). In such case you must add a transcode device in the settings as well, for example `settings.TRANSCODE_DEVICE_NAME = "Transcode"`.
Write permission groups	No	At transferring an asset from a device to this device, the user issuing the transfer request should be part of a group that is in this device's `Write permission groups`
Receive xml meta	No	Boolean value indicating if to write the assets metadata as a XML file on the device during asset transfer to this device. Default is `false`.
Archive connector	No	A reference to the archive connector to be used for sending to archive assets from this device.
Protocol	Yes	The transfer protocol to the device: Copy: default FTP Note: The SMB protocol setting is deprecated. Use Copy instead (requires SMB share mounted in host OS).
.Anonymous	No	Field necessary for the FTP protocol.
Server	No	Field necessary for the FTP protocol.
User name	No	Field necessary for the FTP protocol.
Password	No	Field necessary for the FTP protocol.

Device filter

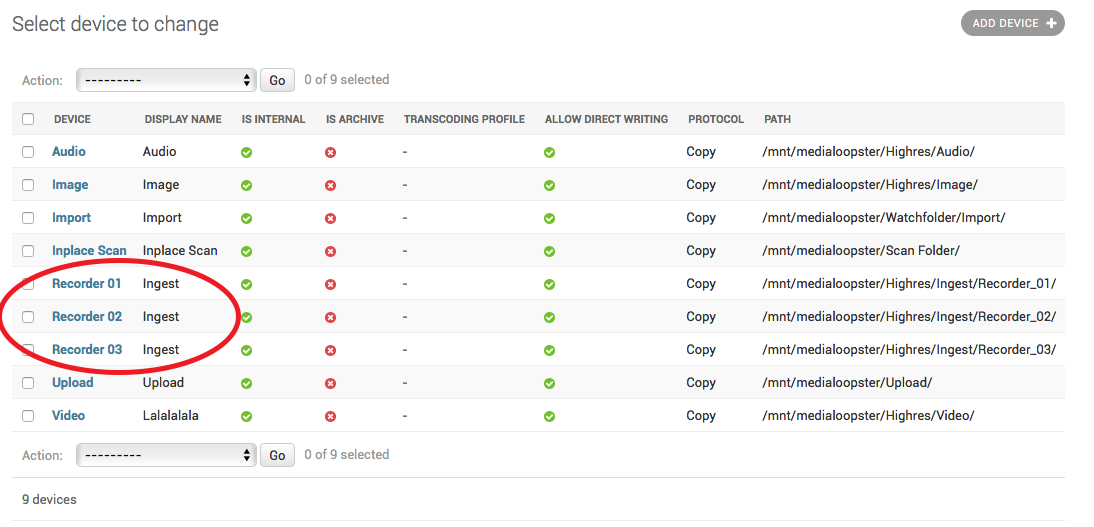

Devices can share a common display name field, which allows them to be grouped together in the device admin page:

Moreover, if you overwrite the settings.DEVICE_FILTER in custom.py, the users can filter in the browser interface the assets belonging to only the devices with that "display name":

custom.py

DEVICE_FILTER = [
    {
        "display_name": "All audio assets",
        "value_name": "Audio"
    },
    {
        "display_name": "All ingest assets",
        "value_name": "Ingest"
    }
]

Where:

display_name: the text that will be shown in the browser as device filter option
value_name: the value of the device "display name "field

In this case, after an Elasticsearch reindex and restart of the frontend Docker node, the user will be able to select between :
